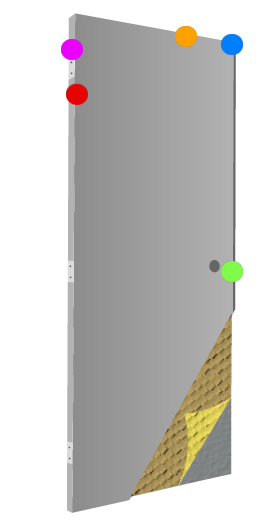

Lead Lined Doors

  • 1 3/4” standard; other thicknesses available
  • Medical shielding uses
  • Any manufacturer’s hinge locations
  • 18-gauge galvannealed steel standard
  • 18-gauge top and bottom channels spot welded to face sheets
  • Continuously welded vertical edges (seamless) standard
  • Rust inhibitive prime coat ANSI/SDI A250.10
  • 99.9% pure lead meeting federal specifications QQ-L-201F Grade C and ASTM B749.

Material Options

  • 16-gauge and 14-gauge steel
  • Stainless steel, available in 304 or 316 alloys

Feature Options

  • 90-minute fire label (up to 4′ x 8′ lead-lined doors, no lites, no cut-outs)
  • Flush top cap
  • Any manufacturer’s Deadlock prep, Panic prep, and Mortise sectional trim

Hardware Reinforcements

  • 3/16” for hinges
  • 12-gauge for locks standard
  • 14-gauge for closers standard
  • Heavier gauge reinforcements available
